PROVALVE 1600 SL

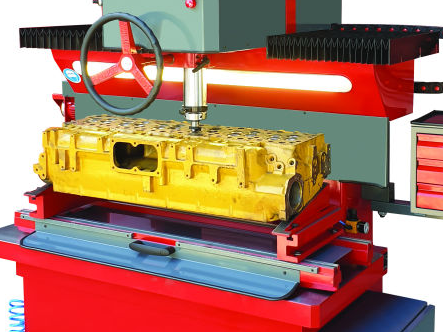

PROVALVE® 1600 offers advanced technology with high accuracy 4-point air cushion positioning and centering system, and provides optimum solutions to meet the demands of the market for today's sophisticated cylinder heads.

Provalve 800
1

ADVANCED TECHNOLOGY

Automatic start of the precise centering process and automatic stop at the end of process and depth control and memory with digital counter and stop with the buzzer.

2

EASY AND SIMPLE

Automatic centering is to start the high precise centering which is done by automatically instead of done by operator manually. When the adjustments are set,the automatic centering function is began to start according to given time intervals when the centering is done, work table is locked by vacuum pump. This operation is called Automatic Centering.

3

HIGH EFFICIENCY

The vacuum test result is obtained by digital pressure sensor which has attached on the machine and the results can be saved to USB Flash drive. Depth control of the stroke is to keep track of stroke. Memory function is to warn operator when the desired depth is reached by the help of buzzer.

Clamping Capacity

Machining dia.capacity of valve seat Ø16 – Ø 80 mm.(1600 SE/1600S)
Ø16 – Ø 80 mm.(1600 SL)

Machining longitudinal capacity of valve seat / between first –last hole 1610  mm.

Spindle Specifications

Spindle rotation by 0.75 Kw
A.C Servo motor with constant torque.
Infinitely variable speed from
0 to 700 r.p.m with servo driver.
Spindle movement up-down
200 mm(1600 SE/1600S)
250 mm(1600 SL).

Friction Free Movement

Longitudinal horizontal movement of work-head by friction free air cushion 850 mm.
Front-back-right-left as radius movement of sphere cylinder by friction free air cushion 14 mm.
• Spindle inclination in all directions by spherical bearing by friction free air cushion 10 degree.

Provalve 800

PROVALVE 1600

- Electric control panel with push button.
- Automatic centering with the help of quadruple air cushion system.
- Vacuum clamping system of work table
- Electric installation / 24 VDC.

Provalve 800s

PROVALVE 1600 SL

-Electric control panel with 10 inch touch color screen
- Automatic centering with the help of quadruple air cushion system.
- Air sensors of air cushions
- Vacuum clamping system of work table
- Electric installation / 24 VDC
